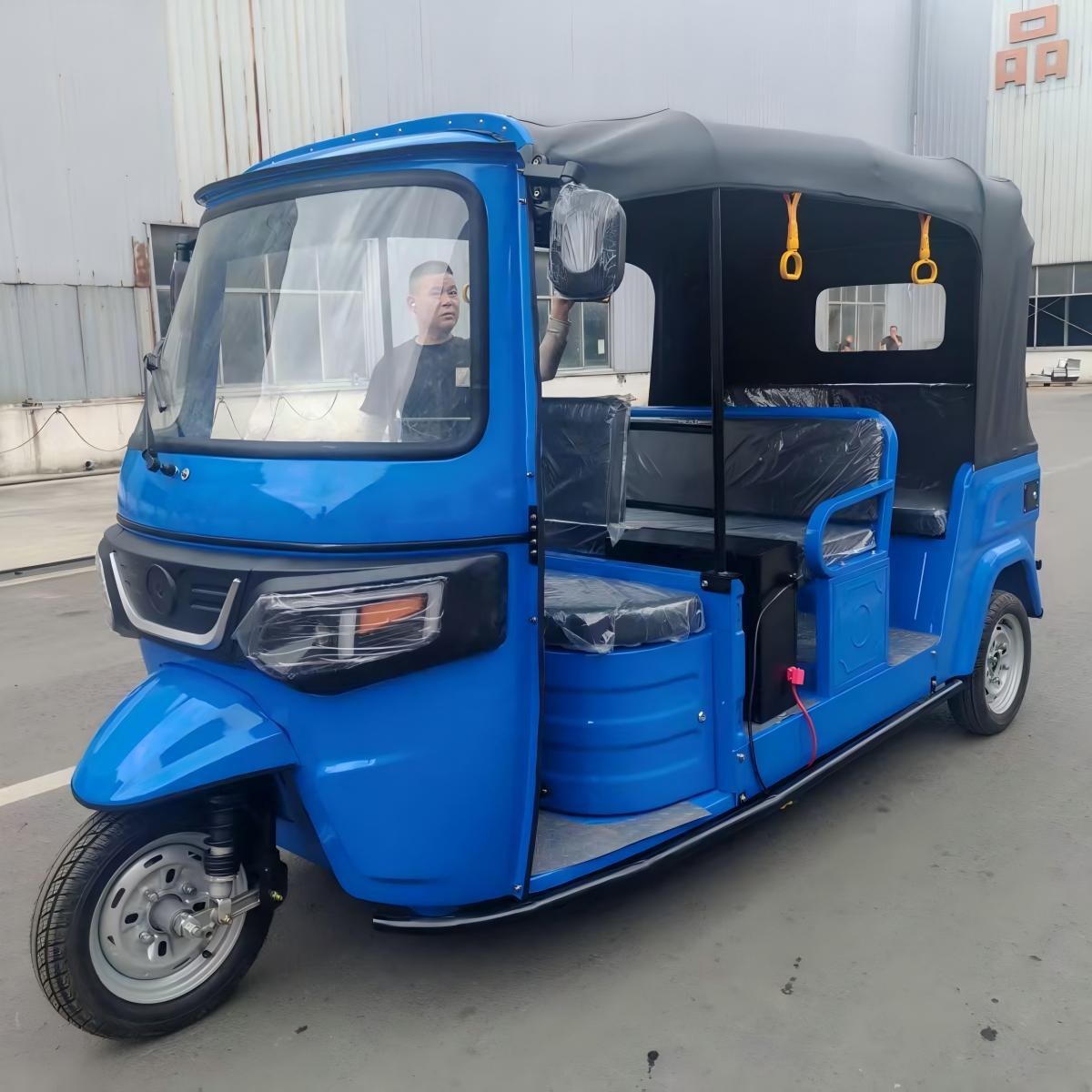

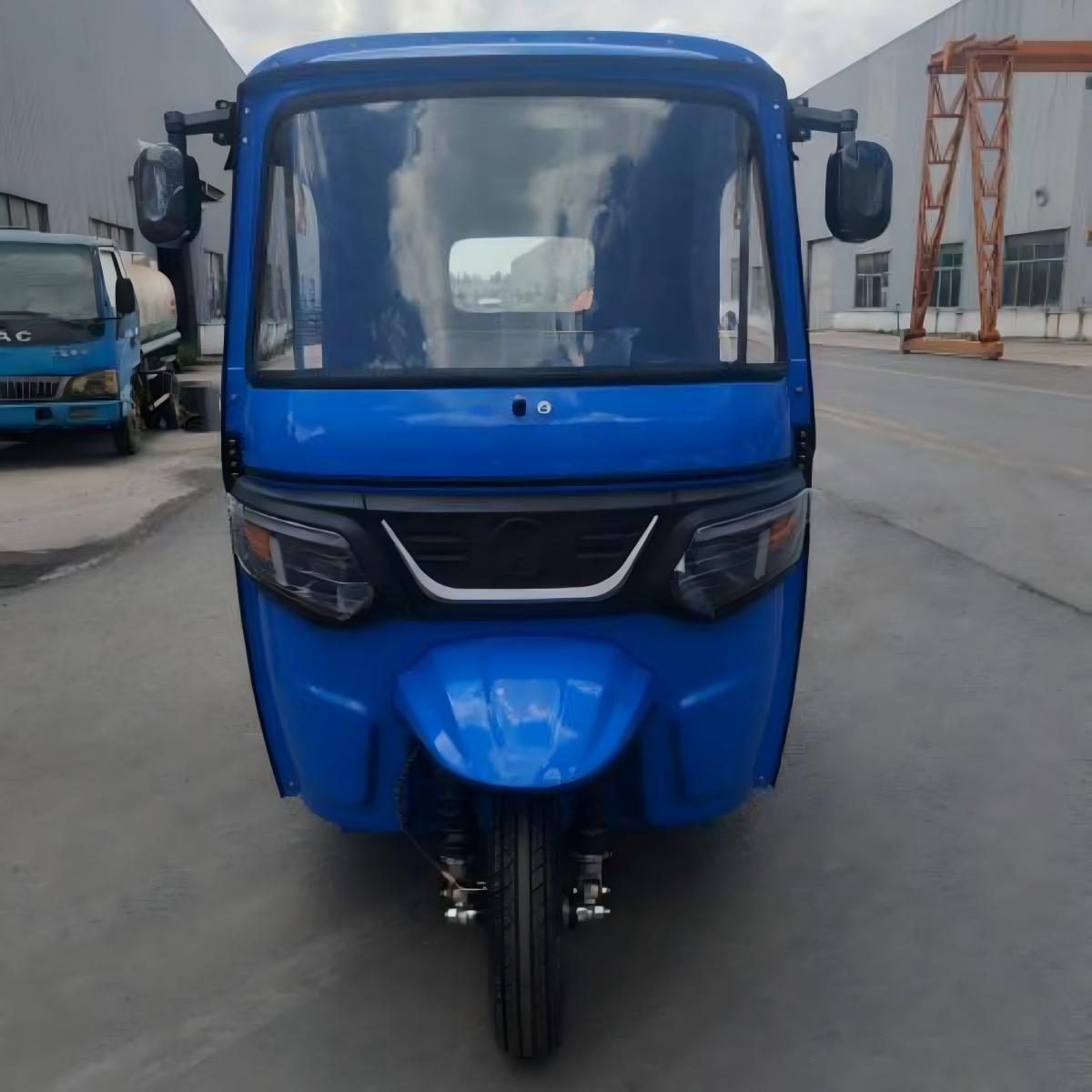

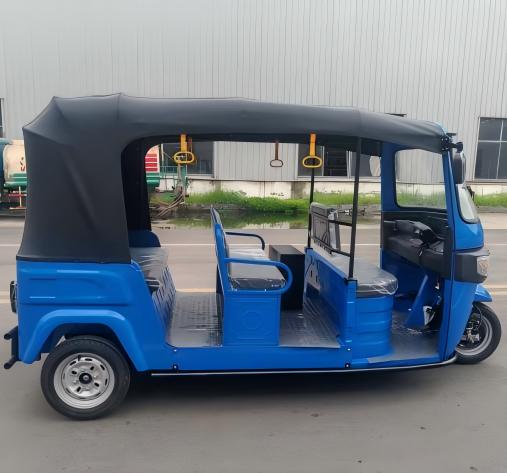

Designed for commercial passenger transportation, combining electric drive with a 200cc gasoline engine for flexible operation. The three-row seating layout is suitable for taxi services, local route transportation, tourism, shuttle services and commercial fleet applications.
PASSENGER CAPACITY
7 People
POWER TYPE
Hybrid
Factory Direct · OEM/ODM · CKD/SKD
TECHNICAL SPECIFICATIONS
Key specifications for commercial passenger transportation and international B2B procurement.
Passenger Capacity: 7 People
Overall Dimensions: 3360 × 1360 × 1850 mm
Wheelbase: 2720 mm
Track Width: 1200 mm
Ground Clearance: 205 mm
Minimum Turning Radius: 4.5 m
Maximum Speed: 60 km/h
Gradeability: 25%
Curb Weight: 450 kg (Excluding Battery)
Rated Load: ≤700 kg
Driving Range: Up to 200 km
Charging Time: Approx. 8 Hours
HYBRID POWER SYSTEM
Dual power configuration combining electric drive with a 200cc gasoline engine for flexible commercial operation.
Gasoline Engine: 200cc
Transmission: CVT
Electric Motor: 72V 4000W AC Asynchronous Motor
Controller: 72V 4000W AC Asynchronous Controller
Battery: 72V 200Ah LiFePO₄ Battery
Charger: Smart Fully Automatic Charger
Lighting & Signals: LED headlights, turn signals, brake lights, running lights, instrument display, electric horn and reverse warning buzzer.
CHASSIS & DRIVE SYSTEM
Chassis, suspension and braking configuration designed for commercial passenger applications.
Frame: Integral Welded Frame with Pickling, Phosphating, Electrophoretic Coating and Baking Paint
Drive System: Rear-Wheel Drive with Forward and Reverse
Steering: Handlebar-Type Steering System
Front Suspension: Reinforced Double-Rocker-Arm Spring Front Fork
Rear Suspension: Automotive-Grade CV-Joint Independent Shock-Absorbing Transmission System
Braking: Hydraulic Drum Brakes on All Three Wheels + Foot-Operated Mechanical Parking Brake
Tires: 125/65-12 Front & Rear
BODY & INTERIOR
Practical body and interior configuration for daily passenger transportation.
Paint: Automotive-Grade Paint
Body: Steel Frame with Integrally Stamped Body Panels
Dashboard: Injection-Molded Dashboard with Ignition Switch, Instrument Display and Combination Switches
Seats: Molded-Base Cushioned Leather Seats with Backrests
Seating Layout: Three-Row Passenger Configuration
BUILT FOR COMMERCIAL PASSENGER TRANSPORT
A flexible hybrid passenger vehicle solution for different commercial mobility applications.
Taxi & Local Transport
Suitable for passenger transportation, taxi services and local route operations.
TOURISM & SHUTTLE
Designed for tourism, resort transportation and commercial shuttle applications.
FLEET OPERATIONS
A practical vehicle option for transportation companies and commercial fleet operators.
AVAILABLE CONFIGURATION OPTIONS
Configuration options are available for different market and commercial requirements.
01
MOTOR OPTIONS
Standard 4000W electric motor with optional 5000W upgrade.
02
BATTERY OPTIONS
LiFePO₄ battery configurations available according to project requirements.
03
OEM / ODM
Branding and selected product configuration options available for B2B orders.
PRODUCT DETAILS & COMMERCIAL SUPPORT
Factory-direct hybrid tuk tuk solutions for importers, distributors, dealers and fleet operators.
01
FACTORY DIRECT
Direct B2B sourcing for international commercial buyers.
02
OEM / ODM
Product configuration and branding options for different market requirements.
03
CKD / SKD
Flexible supply options for importers and local assembly projects.
READY TO DISCUSS YOUR MARKET?
Tell us your market, business type and estimated quantity. We’ll discuss the suitable electric tuk tuk solution and cooperation options for your project.
